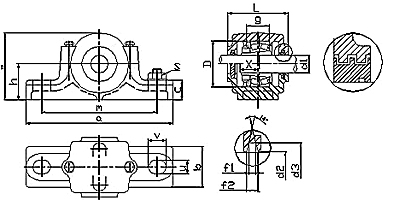

Split Housing: SN500(SSN500) Series

  IMG IMG
Housing
NO.		 Shaft Dia
d1		 Dimensions(mm) Weight
(kg)
mm in D
H8		 a b c g
H12		 h
h12		 L L1 W n m s u v x d2
H12		 d3
H12		 f1
H13		 f2
SN505 20 3/4 52 165 46 22 25 40 67 70 75 25 130 M12 15 20 22 21.5 31 3 4.2 1.4
SN506 25 1 62 185 52 22 30 50 77 80 90 25 150 M12 15 20 22 26.5 38 4 5.4 2.15
SN507 30 1-1/8 72 185 52 22 33 50 82 85 95 25 150 M12 15 20 24 31.5 43 4 5.4 2.35
SN508 35 1-1/4 80 205 60 25 33 60 85 90 110 30 170 M12 15 20 26 36.5 48 4 5.4 3.2
SN509
SSN509		 40 1-1/2 85 205 60 25 31 60 85 90 112 30 170 M12 15 20 28 41.5 53 4 5.4 3.0
4.4
SN510
SSN510		 45 1-3/4 90 205 60 25 33 60 90 95 115 30 170 M12 15 20 28 46.5 58 4 5.4 3.75
5.0
SN511
SSN511		 50 2 100 255 70 28 33 70 95 100 130 35 210 M16 18 23 30 51.5 67 5 6.9 5.3
7.15
SN512
SSN512		 55 2-1/8 110 255 70 30 38 70 105 110 135 35 210 M16 18 23 32 56.5 72 5 6.9 6.3
7.95
SN513
SSN513		 60 2-1/4 120 275 80 30 43 80 110 115 150 40 230 M16 18 23 36 62 77 5 6.8 6.8
9.9
SN515
SSN516		 65 2-1/2 130 280 80 30 41 80 115 120 155 40 230 M16 18 23 38 67 82 5 6.8 7.4
9.3
SN516
SSN516		 70 2-3/4 140 315 90 32 43 95 120 125 175 50 260 M20 22 27 40 72 89 6 8.1 11.4
14.5
SN517
SSN517		 75 3 150 320 90 32 46 95 125 130 185 50 260 M20 22 27 42 77 94 6 8.1 11.1
15.5
SN518
SSN518		 80 3-1/4 160 345 100 35 62.4 100 145 150 195 50 290 M20 22 27 50 82 99 6 8.1 17
20.2
SN519
SSN519		 85 / 170 345 100 35 53 112 140 145 210 50 290 M20 22 27 52 87 104 6 8.1 15.5
SN520
SSN520		 90 3-1/2 180 380 110 40 70.3 112 160 165 218 60 320 M24 26 32 54 92 111 7 9.3 23
27.5
SN522
SSN522		 100 4 200 410 120 45 80 125 175 180 240 70 350 M24 26 32 60 102 125 8 10.8 29
35
SN524
SSN524		 110 4-1/4 215 410 120 45 86 140 185 190 270 70 350 M24 26 32 64 113 135 8 10.7 33.6
43.8
SN526
SSN526		 115 4-1/2 230 445 130 50 90 150 190 195 290 70 380 M24 28 36 64 118 140 8 10.7 41
50.4
SN528
SSN528		 125 5 250 500 150 50 98 150 205 210 305 80 420 M30 33 42 70 128 154 9 12.2 49
62
SN530
SSN530		 135 5-1/4 270 530 160 60 106 160 220 225 325 90 450 M30 33 42 76 138 164 9 12.2 60
75
SN532
SSN532		 140 5-1/2 290 550 160 60 114 170 235 240 345 90 470 M30 33 42 80 143 173 10 13.7 68.8
87
